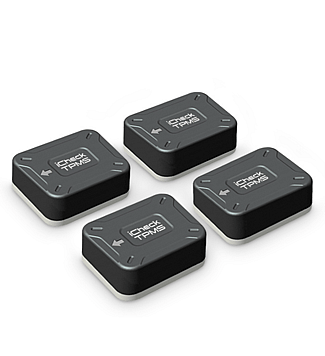

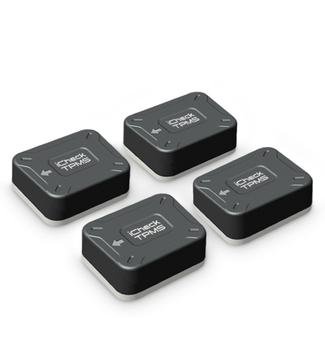

Our caravan hub and wheel bearing sensors are a great safety addition to your iCheck TPMS. The team at iCheck have spent many months and countless hours developing the world’s first TPMS capable of monitoring the hub and wheel bearing temperatures on your caravan.

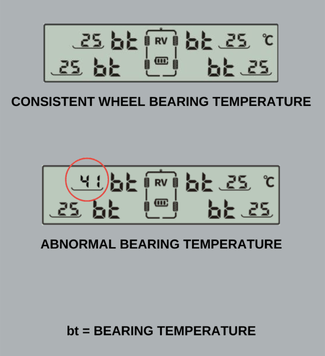

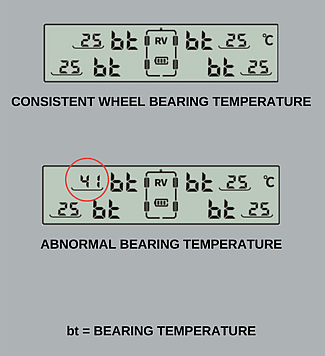

Working in a similar fashion to the iCheck TPMS wheel sensors, the bearing sensors send a wireless signal to the monitor inside your car, giving real-time bearing temperatures with visual and audible alarm notifications.
You can now monitor and address any problems that may arise before any damage is done. Offering great peace of mind, your towing travels will be far less stressful knowing your tyre and wheel bearing pressures and temperatures are all operating correctly.
Please note the wheel bearing sensors are only compatible with the iCheckTPMS NextGen monitors.
$154 – $307
Description
Specifications
Working Temperature: -30°C ~ 93°C
Input Voltage/Current: DC 3V
Frequency: 433.92 MHz
Transmission Power: <10 dBm
Temperature Accuracy: ± 3°C
Size (LxWxH): 30x24x15mm
Weight: 11g
Battery Life: Approximately 2 Years
Replaceable Battery: No. Please note you can deactivate the sensors when not in use to further extend the 2-year battery life.
Installation
The bearing sensors need to be activated and paired to the monitor prior to installation. Refer to your user manual for more information.

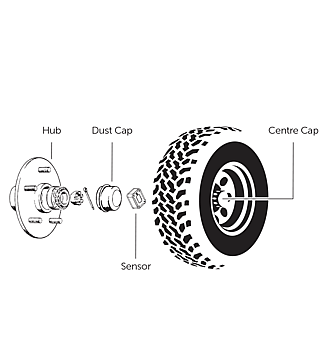

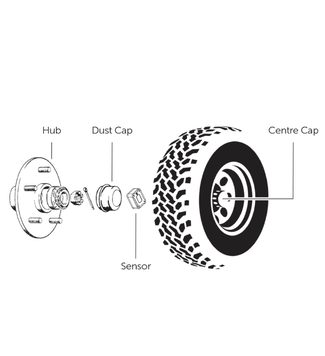

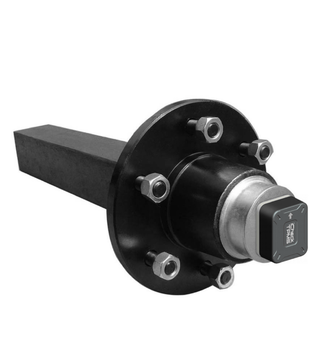

The sensors need to be installed onto a flat-bearing dust cap surface. If you have curved, or raised lettering on your dust caps, it’s advised to change them to a flat type and are easily found at your local trailer or caravan store.
Some wheel types have centre caps that can be removed without having to remove the wheel from the caravan whilst some other wheel types may need to be removed to get access to the wheel-bearing dust caps for the installation of the sensors.
